Hardware buying guide
Buy the right board.
The target layout is a wired DOIO KB16-01-style control board with a four-by-four key grid and three clickable rotary encoders. Product listings and revisions can change, so verify the physical controls shown below before ordering.
Required physical layout
- Sixteen mechanical keys arranged as a 4 × 4 grid
- Three rotary encoders: two small upper dials and one large lower dial
- Each encoder supports clockwise, anticlockwise and press actions
- USB connection that carries data, not charging only
- Programmable key and encoder mappings
- A return option in case the delivered revision differs from the listing
CHECK BEFORE PAYMENT
Listings are not specifications.
Compare the destination listing photographs against the supplied images. A 12-key/two-knob board is a different layout and will not match the standard map.
Amazon prices, sellers, delivery dates and hardware revisions can change without notice. ThisBoard does not fulfil or warrant the hardware.

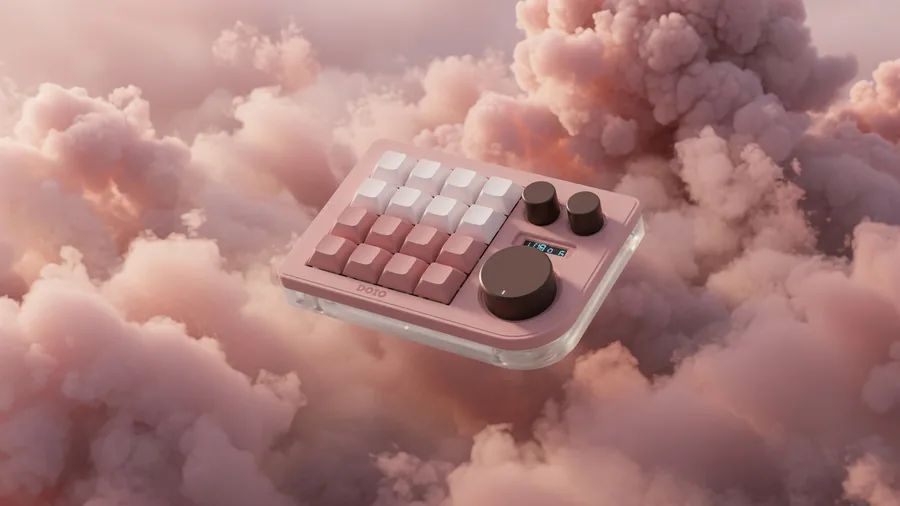

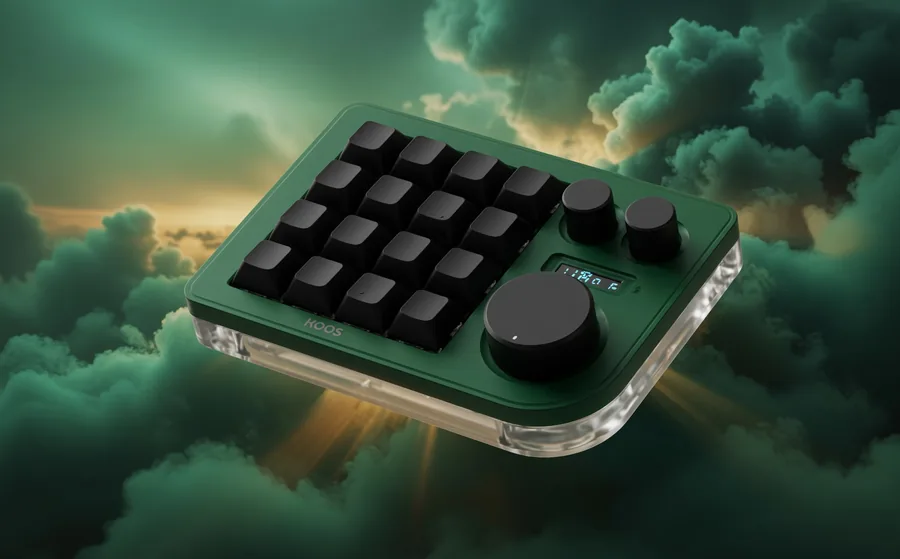

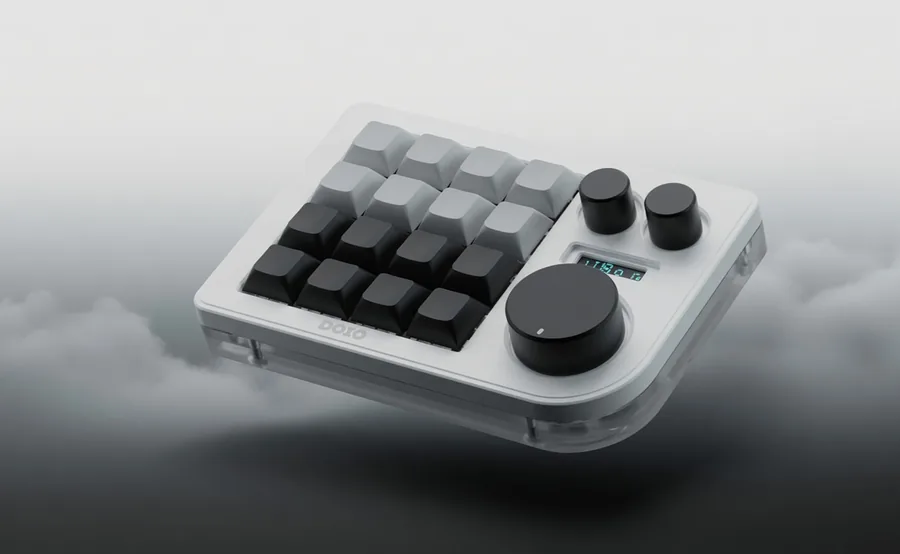

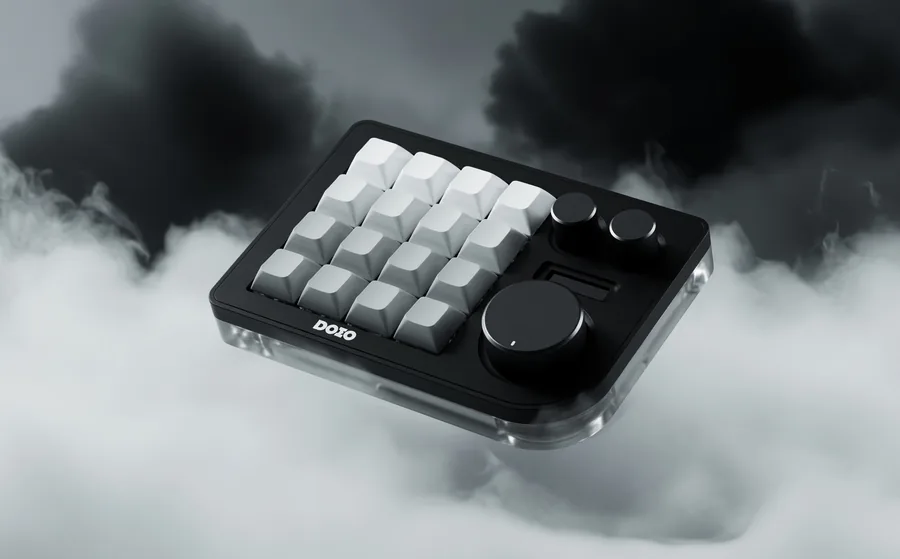

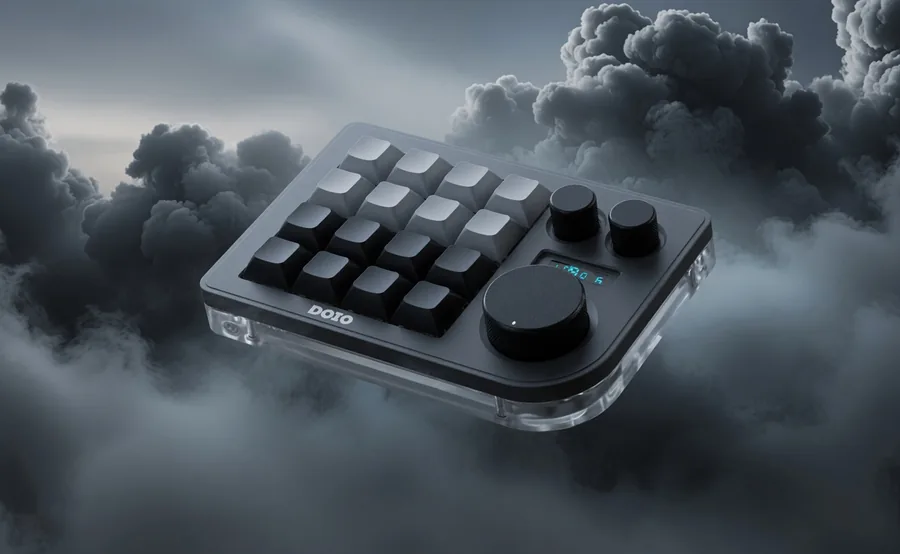

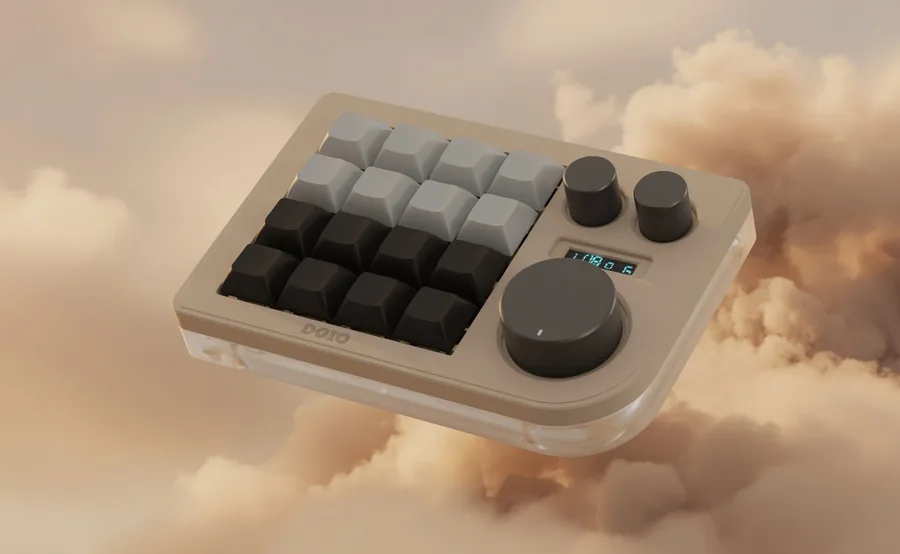

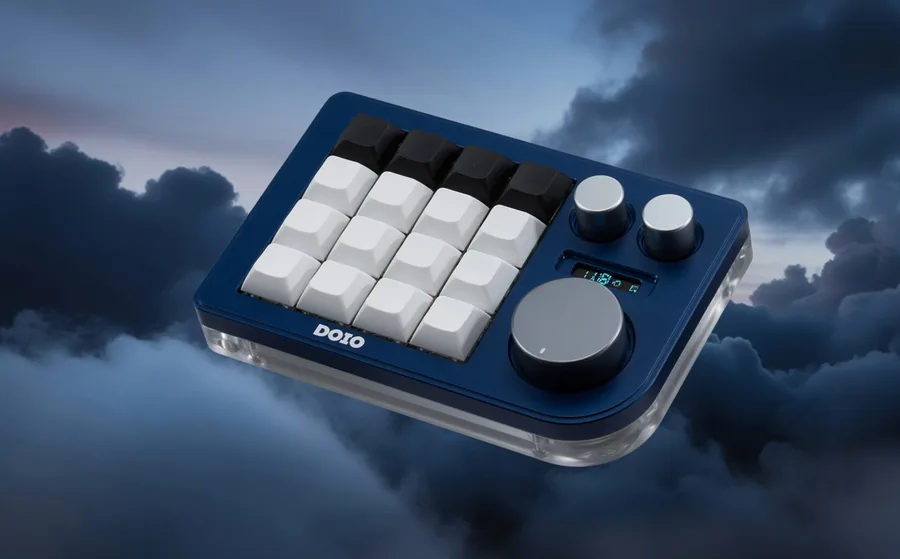

Affiliate colourways
Seven finishes.
These buttons use the affiliate links supplied for the project. A qualifying purchase may generate a commission without increasing the buyer’s price.
What to do when it arrives
- Connect the board by USB and confirm Windows detects keyboard input.
- Open the supported configurator and verify all sixteen keys and three encoder presses are visible.
- Follow the ThisBoard signal map.
- Install ThisBoard Studio and use Diagnostics to verify every control.
